Railcar Loading Ramps
If you are looking for a portable loading dock for sale that boasts superior railcar loading and unloading capabilities, the Dura-Ramp Rail series might be the perfect option for you. This versatile and convenient forklift loading ramp has a unique three-piece ramp construction and fork pockets on each section, making it easy to maneuver without compromising on safe operation. Dura-Ramp Rail loading ramps are the ideal solution for all your railcar loading and forklift ramp needs.
| Model Number | Level Length | Ramp Length | Overall Width | Service Width | Capacity | Weight | Service Height | Grade |
|---|---|---|---|---|---|---|---|---|
| DR-RAIL12 | 12 ft. x 12 ft. | 25 ft. | 77 in. | 72 in. | 20K lbs. | 12,000 lbs. | 42-56 in. | 16% |
| DR-RAIL15 | 15 ft. x 15 ft. | 25 ft. | 95 in. | 89 in. | 30K lbs. | 11,520 lbs. | 42-56 in. | 16% |
Ramp Benefits
Superior Railcar Loading Functionality
- Large forklift loading ramp platform improves operating efficiency
- Unique ramp design is compatible with all boxcar door sizes
- Eliminates costly railcar moves by spotting several railcars at once
Forklift Ramps Build To Last
- Built to withstand high traffic usage in all weather conditions
- Strong I-beam construction offers the best in industry safety standards
Superior Forklift Ramp Safety
- Serrated steel bar grate decking for optimal traction
- Removable safety rail allows the ramp to be situated at either end to allow for right or left turn configuration
Maintenance Free Forklift Loading Ramp Design
- Virtually maintenance free ramp design eliminates costly downtime
- Fork pockets facilitate fast installation and easy takedown
Ramp Features
Height-Adjustable Support Legs
- Two-speed hand crank system is user friendly and adjusts deck height in seconds to meet the railcar where it is at
Quality Finishing
- Coated with a high-quality polyurethane paint in the color of your choice
Customization Options Available
- Adapt the loading ramp design to accommodate tractor-trailer loading & unloading
Heavy-Duty I-Beam Construction
- Trust the tough durability and superior strength of the integral I-Beam structure
Separate Steel Loading Ramp Platform
- Allows for easy movability, convenient operating, and uncompromising safety
Ramp Options
Electric Easy-Fit

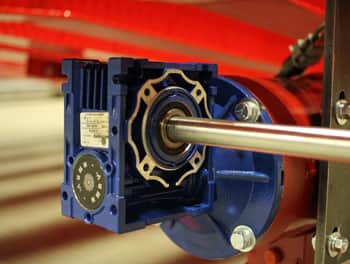

Requiring just a standard 110V electrical connection, the Electric Easy-Lift makes the process of raising or lowering your portable loading dock incredibly simple.Transition Plate

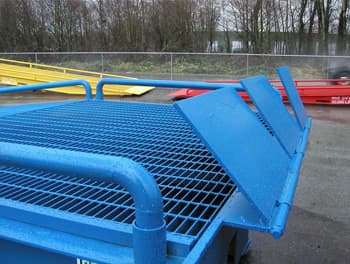

16″ manually operated hinged loading dock transition plate. Replaces the integrated 6” dock overlap with a series of longer, door style hinged plates.Integrated Dock Leveler

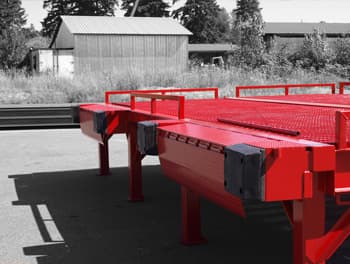

Integrated dock leveler, replaces the integrated 6” dock overlap. Adds more height adjustment, includes rubber bumpers and saves time in truck loading applications.Removable Hand Railings

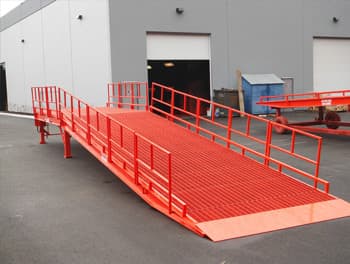

Recommended for any type of foot traffic.Wood Decking

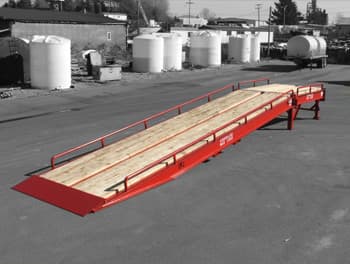

A must if any type of tracked equipment will be using the dock ramp.Upgraded Channel Rails

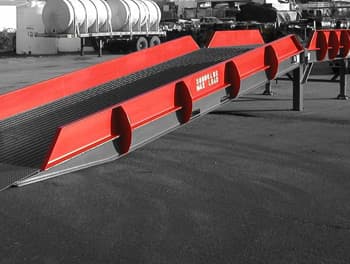

Replaces our standard tube railing with a solid, robust, curb railing. Built to withstand the harshest abuse.
